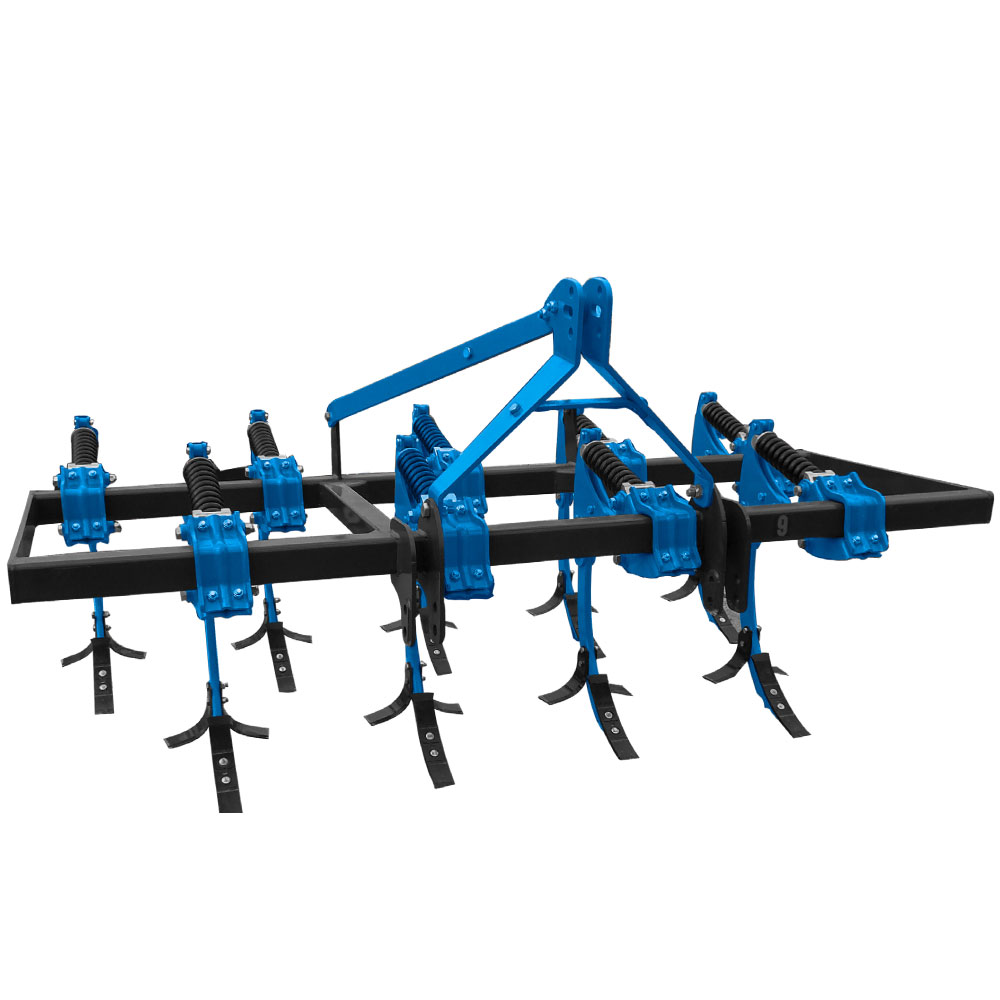

Spring-Loaded Tine Chisel

Category:

Description

Naras Spring Chisel is produced to break the hardened base in the soil. Since it swells the soil without overturning, it increases productivity by performing protective tillage. Thanks to the independent spring foot mechanisms, the foot that is exposed to the effects, which coincides with hard and stony places, is disabled. Afterwards, thanks to this automatic mechanism, the foot, which is freed from the effect, continues to work. In this way, damage to the blade and foot assemblies is prevented. It is capable of stubble and deep tillage. It also performs the breaking of the hard layer formed over time in the part where the plow depth cannot reach. The parts produced by choosing special materials have been made more durable by heat treatment.

– Reinforced chassis
– Hydraulic roller option
– Mechanism produced with forging technology
– Long-lasting durable blades

Technical Specifications

Spring-Loaded Tine Chisel
No. Code Technicial Specifications
1 N-YC0501 Number of feet: 5; Working width: 1750 mm; Working depth: 375-450 mm; Weight: 465; Required tractor power: 70 – 90 HP
2 N-YC0701 Number of feet: 7; Working width: 2400 mm; Working depth: 375-450 mm; Weight: 615; Required tractor power: 90 – 105 HP
3 N-YC0901 Number of feet: 9; Working width: 3100 mm; Working depth: 375-450 mm; Weight: 760; Required tractor power: 110 – 125 HP
4 N-YC1101 Number of feet: 11; Working width: 3800 mm; Working depth: 375-450 mm; Weight: 890; Required tractor power: 125 – 140 HP
6 N-YCM0701 Light type hydraulic roller; Number of feet: 7; Working width: 2400 mm; Working depth: 375-450 mm; Weight: 850; Required tractor power: 90 – 105 HP
7 N-YCM0901 Light type hydraulic roller; Number of feet: 9; Working width: 3100 mm; Working depth: 375-450 mm; Weight: 1060; Required tractor power: 110 – 125 HP
8 N-YCM1101 Light type hydraulic roller; Number of feet: 11; Working width: 3800 mm; Working depth: 375-450 mm; Weight: 1150; Required tractor power: 125 – 140 HP
